KTTA19-C700 Procurement Guide for Generator Set Builders

A generator set builder published a datasheet for a new set and later found that the heat rejection figure on it had come from an earlier build of the engine rather than the one now supplied. The packaged radiator had been sized on the old number, and the first hot week of the season showed the difference.

The builder's problem differs from an operator's. An operator buys an engine to do a job, while a builder buys an engine that becomes a component of its own product, and every figure the builder publishes travels back to the unit behind it.

This guide covers KTTA19-C700 engine procurement from the builder's side of the counter, sets out what generator set engine sourcing has to pin down before a set is designed around a unit, and works through the KTTA19 engine order guide items that decide whether the second batch matches the first.

1. KTTA19-C700 Engine Procurement: The Buyer in a Set Programme

KTTA19-C700 engine procurement changes character once the buyer assembles rather than operates, because the engine stops being equipment and becomes a bill of materials line.

A builder publishes a rating, a footprint and a price for the set it sells, and every one of those three rests on figures that come from the engine supplier. The unit is a six cylinder inline diesel of about nineteen litres, charged in two stages with the air cooled after compression, whose output sits in the several hundred kilowatt band and whose governor holds a fixed speed so that the frequency of the set stays steady.

Two consequences follow from that. The first is that the engine is ordered to a specification written by the builder rather than to a standard build, since the set around it has already been drawn.

The second is that the supplier's scope has to be defined precisely. Some programmes buy the bare engine and add the cooling and control package themselves, while others buy the engine with the radiator, the guard and the control panel already fitted. Both arrangements work, and mixing them inside one programme does not.

2. Generator Set Engine Sourcing: The Interface the Builder Owns

Generator set engine sourcing succeeds or fails at the interface between the engine and the alternator, and that interface belongs to the builder regardless of who supplies the parts.

The housing is the first item. A flywheel housing of a stated size mates to the alternator's own housing through an adapter, and the coupling between them has to be set for alignment and end float once the set is on its base.

The alternator arrangement decides the coupling type. A single bearing machine carries its own bearing at the drive end and couples to the engine through a disc, while a two bearing machine couples through a flexible element and leaves the alignment to the base. Getting that decision wrong is expensive late in a programme, because it changes the bedplate rather than the engine.

The control interface comes next. A set controller wants certain signals, and whether those come from a mechanical governor with a droop setting or from an electronic unit that accepts a speed command is settled at this stage rather than at commissioning.

The pipework follows. Exhaust outlet position, coolant connections, fuel supply and return, and the starting system voltage all have to be agreed before a drawing is released.

3. KTTA19 Engine Order Guide: The Figures the Set Datasheet Needs

A KTTA19 engine order guide for a builder looks different from one written for an operator, because the useful answer is a set of figures rather than a single rating.

These are the entries a builder needs in writing before a datasheet is written, and each of them belongs to the exact build being ordered.

A datasheet built from an earlier build of the same designation is the commonest source of a manufactured set that does not meet its own literature.

4. KTTA19-C700 Engine Procurement: Rating Class and What the Builder Sells

KTTA19-C700 engine procurement carries a commercial duty that an operator never faces, because the builder is the party that resells the output.

A set is sold on a rating that states how long the figure can be held and how many hours a year the machine is expected to run, and that statement comes from the engine behind it. When the engine class and the set's declared duty are set to different patterns, the gap is carried by the builder's warranty rather than by the supplier's.

The practical discipline is to quote the class alongside every rating, in the same document that carries the figure. A set offered for continuous work and one offered for standby duty may use the same engine, and they must not be described in the same terms.

A second consequence is parallelism. Where several sets are sold to run together, the droop and the load sharing behaviour belong on the same sheet as the rating, since a builder asked to support a parallel installation is being asked about the governor rather than about the block.

5. Generator Set Engine Sourcing: From a Pilot Unit to a Repeat Build

Generator set engine sourcing settles into a rhythm once a programme moves past the first set, and the rhythm is what a supplier is really being asked to support.

The pilot unit is the qualification step. One engine is built, married to the alternator and run on the builder's own test bed, and whatever is adjusted during that work has to be written down before the next order is placed.

That written record is the build freeze. It names the housing, the coupling, the governor setting, the thermostat arrangement, the accessory list and the position of the connections, and it is the document that lets a batch placed months later be identical.

Pinbo Import and Export handles programmes on that basis, since a builder ordering the second batch is not asking for another engine so much as asking for the same one again. Jining Pinbo Import and Export Co Ltd keeps the frozen specification with the order number, so a replacement supplied into a delivered set matches the unit already in it.

6. KTTA19 Engine Order Guide: Packing for an Assembly Line

The KTTA19 engine order guide reaches its least glamorous and most practical section when a unit has to arrive at an assembly line rather than at a yard.

A line has no room to store crates and no time to recover from a unit that arrives with a fitting bent or a port left open. Packing is therefore part of the specification rather than a detail of shipping.

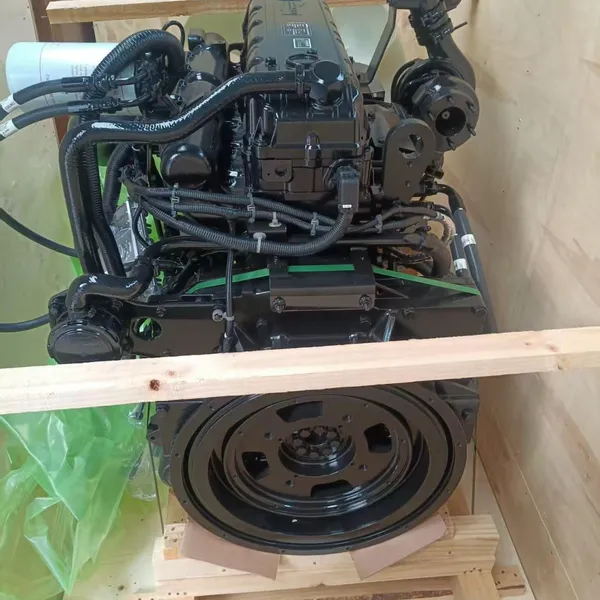

The engine itself travels with the openings blanked, the surfaces protected and the unit braced in a way that survives a container being lifted and set down. Loose accessories travel separately and labelled, because a cable, a sensor or a set of brackets found loose in a crate is a delay on the line.

The arrival check is the other half of the routine. The packing list, the outline drawing and the frozen specification are read against the unit before it is lifted onto the bedplate, and any variance is raised then rather than after assembly.

Jining Pinbo Import and Export sends that document set with the shipment, which turns the receiving step into a comparison rather than an inspection.

7. KTTA19-C700 Engine Procurement: Spares Behind a Fleet of Sets

KTTA19-C700 engine procurement ends, for the builder, in a question about the years after the set is sold.

A set in the field wears items on a schedule the engine sets: filters, belts where they are fitted, hoses, and the parts of the cooling and fuel system that see the most movement. A builder supporting a fleet of sets needs a route to those items that does not depend on a single unit's history.

The distinction that matters is who answers what. The supplier answers for the engine and its parts, while the builder answers for the set as a whole, and a clear division is worth more than a generous one that is not written down.

The parts that decide whether a set is repaired quickly are the ordinary ones. Filters, gaskets, sensors and injection components change hands often enough that availability matters more than any single figure on a datasheet.

8. Generator Set Engine Sourcing: Setting Two Suppliers Side by Side

Generator set engine sourcing reduces to a comparison once two suppliers are offering the same designation, and the differences that matter are rarely in the rating.

The first is the interface. A supplier who can state the housing size, the coupling arrangement and the control signals without being prompted has done the work that prevents a bedplate being redrawn.

The second is documentation. Dimension drawings, rating tables and connection details delivered before the order let a set be designed in parallel with the engine being built.

The third is repeatability, which is judged by asking what happens when the same specification is ordered six months later. Pinbo Power answers that question with the specification file rather than with a promise, and the file is what a builder can check.

The fourth is the parts route, and the fifth is how quickly a technical question is answered once the sets are in the field. Jining Pinbo Import and Export treats the second order and the fifth as the test of the whole arrangement, because a set programme lasts longer than the transaction that started it.

9. Frequently Asked Questions

9.1 What has to be fixed at the start of KTTA19-C700 engine procurement?

KTTA19-C700 engine procurement has to fix the interface before the engine itself, because the set is drawn around it. The flywheel housing size, the coupling arrangement and whether the alternator is single or two bearing decide the bedplate and cannot be changed late. The control signals the set controller expects belong in the same conversation, as do the exhaust outlet position, the coolant connections and the starting system voltage. Once those are settled the engine build can be specified with confidence.

9.2 Where does generator set engine sourcing most often go wrong?

Generator set engine sourcing most often goes wrong at the interface between engine and alternator. A housing or coupling chosen without checking the alternator arrangement forces a change to the bedplate rather than to the engine, which is the expensive direction. A second common failure is a datasheet built from an earlier build of the same designation, so the heat rejection and air flow figures do not describe the unit actually supplied. Both problems are prevented by settling the interface and the figures in writing before the drawing is released.

9.3 What belongs in a KTTA19 engine order guide for a builder?

A KTTA19 engine order guide for a builder carries a set of figures rather than one rating. It should state the rating table at the conditions the set will meet, the heat rejected to jacket water and charge air, the combustion and cooling air flows, and the exhaust flow and temperature. The fuel curve across the load range, the dry mass with its centre of gravity, and the outline and connection drawings complete it. Each entry belongs to the exact build ordered, not to the designation in general.

9.4 How is repeatability protected across several batches?

Repeatability across batches rests on a written build freeze agreed after the pilot set. That document names the housing, the coupling, the governor setting, the thermostat arrangement, the accessory list and the position of every connection. A batch placed later is then built against the file rather than against memory, and a replacement supplied into a delivered set matches the unit already in it. A supplier who keeps that file against the order number makes the check possible at either end.
